Magnesium Anode is the most common material used as sacrificial anode in cathodic protection system because of its higher driving voltage, easy installation and limited maintenance. It is typically used for buried transmission of oil & gas pipelines and also can be used to protect structures in fresh water
To eliminate any possible flaw, this anode is strictly examined on several measures of quality by our quality auditors. Magnesium Anodes are made from 99.995% pure special high grade Magnesium ingot.
Each Anode has to undergo the below quality check
- Durable finish standards
- Height and Weight as per standard
- Open Circuit Potential Check
- Chemical Composition as per standard
- Destructive test (one per lot)
Magnesium Anode is divided into 2 parts based on their chemical composition.
(a) High Potential Magnesium Anode & (b) Low potential Magnesium Anode.

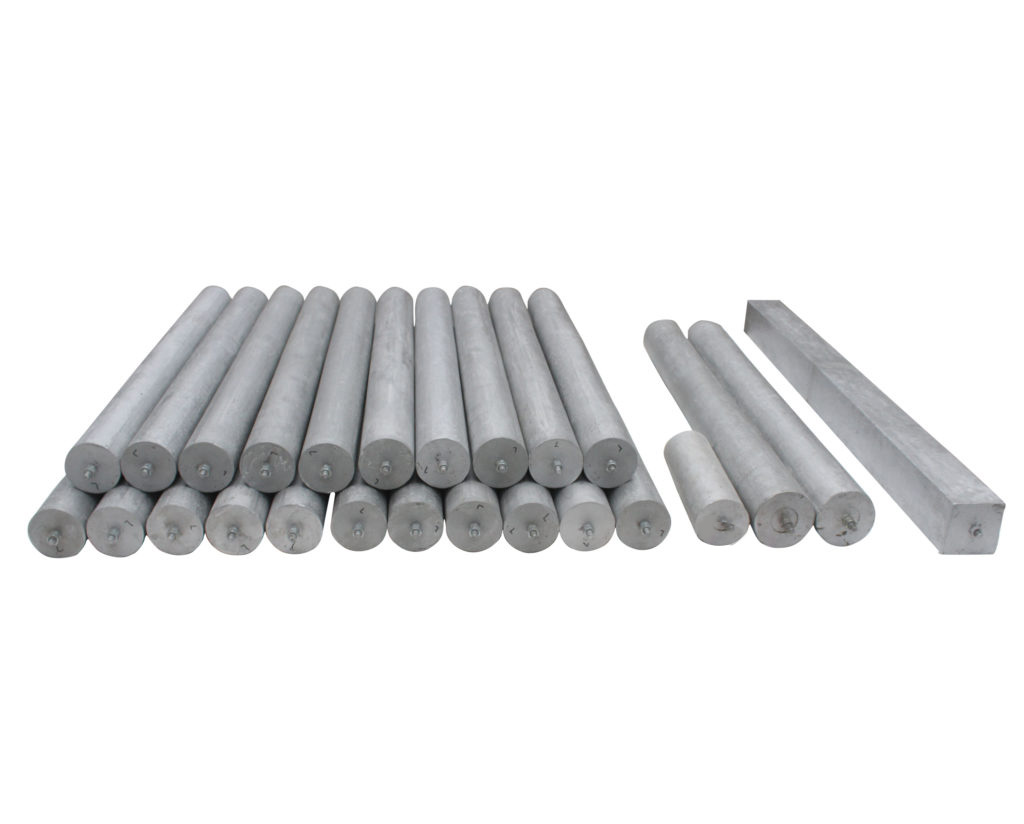

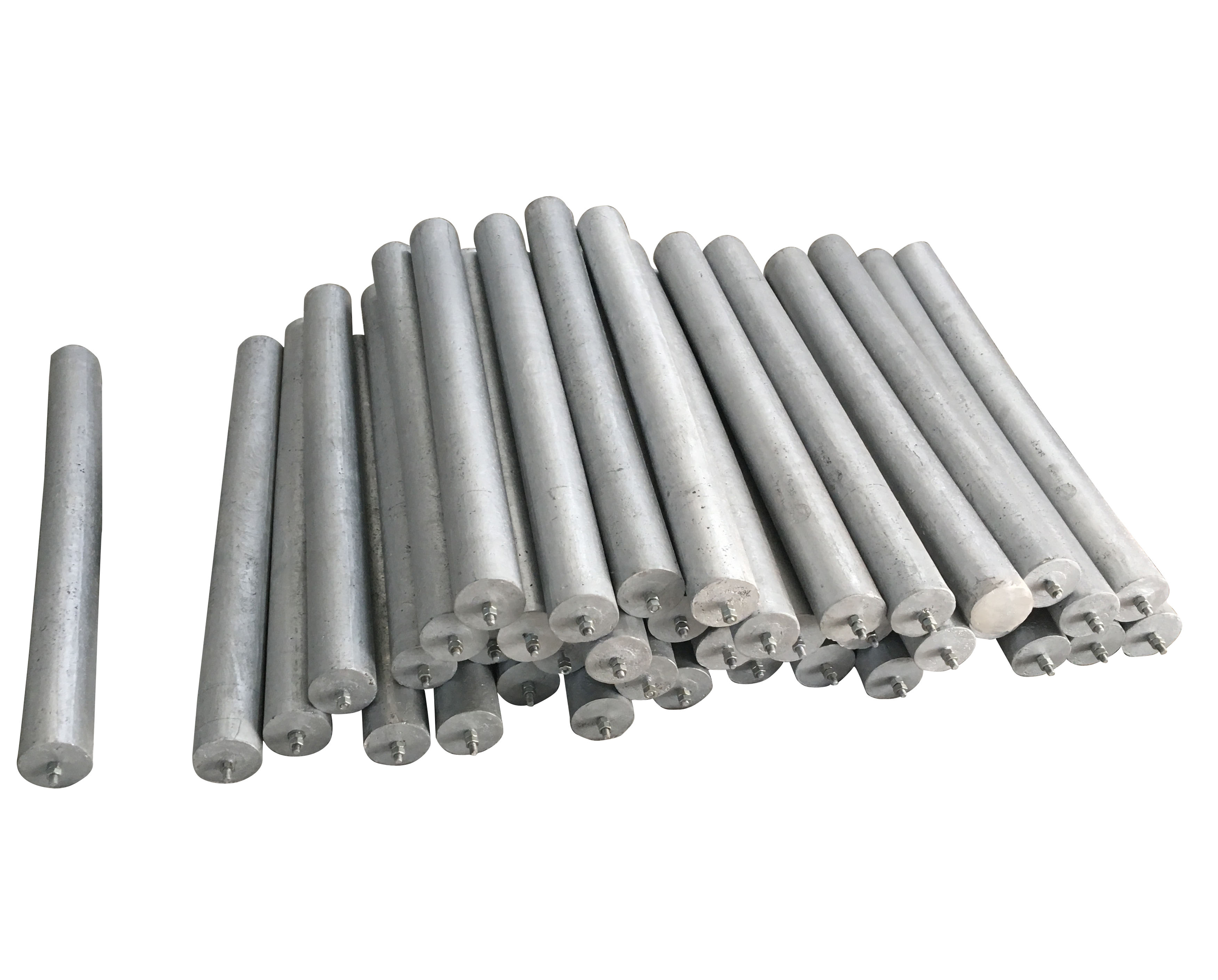

Based on the soil condition choice of type of anode is done. Both the type of Anode has different open circuit potential. Magnesium Anode comes into different shape and size like Cylindrical, Rectangular shape and few more
Chemical Composition
| Parameter | High Potential | Low Potential |
|---|---|---|
| Iron ( Fe ) | 0.03% max | 0.003% max |
| Aluminum ( Al ) | 0.01% max | 5.3 – 6.7% |
| Manganese ( Mn ) | 0.5 – 1.3% | 0.15 – 0.7% |
| Copper ( Cu ) | 0.02% max | 0.02% max |
| Nickel | 0.001% max | 0.002% max |
| Silicon ( Si ) | 0.05% max | 0.1% max |
| Zinc ( Zn ) | 2.5 – 3.5% | |
| Other Metallic Element( Total ) | 0.3% max | 0.003% max |
| Magnesium ( Mg ) | Balance | Balance |
Technical Specification
| Sr. No | Dimension | Weight |
|---|---|---|
| 1 | Dia 80 X 225 mm long | 2 kg approx |
| 2 | Dia 80 X 550 mm long | 5 kg approx |
| 3 | Dia 80 X 900 mm long | 7.6 to 8.0 kg |
| 4 | Dia 125 X 925 mm long | 20 kg approx |
| 5 | Dia 90 X 900 mm long | 10 kg approx |
| 6 | 76 x 76 x 500 mm long | 5 kg approx |
| 7 | 85 X 85 X 800 mm long | 10 kg approx |
| 8 | 85 X 85 X 1100 mm long | 15 kg approx |
Notes :
- Non-standard anodes of other weights or dimensions are also available on request
- We supply both Bare and Prepacked Anodes as per customer’s requirement
Prepacked Magnesium Anode

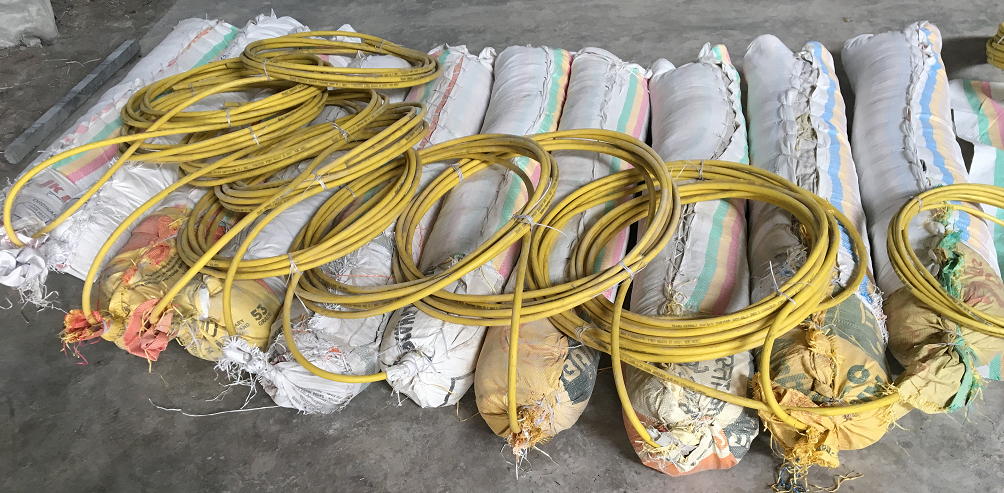

Generally Anodes for underground applications are Supplied with back fill materials. Standard Backfill material consist of Gypsum (75%), Bentonite (20%) & Sodium Sulphate (5%), neatly packed in cotton bags with lead wire for terminations ready to be installed at site.
Cable is been connected with the Anode with Proper lug fitting, Epoxy is been used for the sealing the joint for better connectivity
